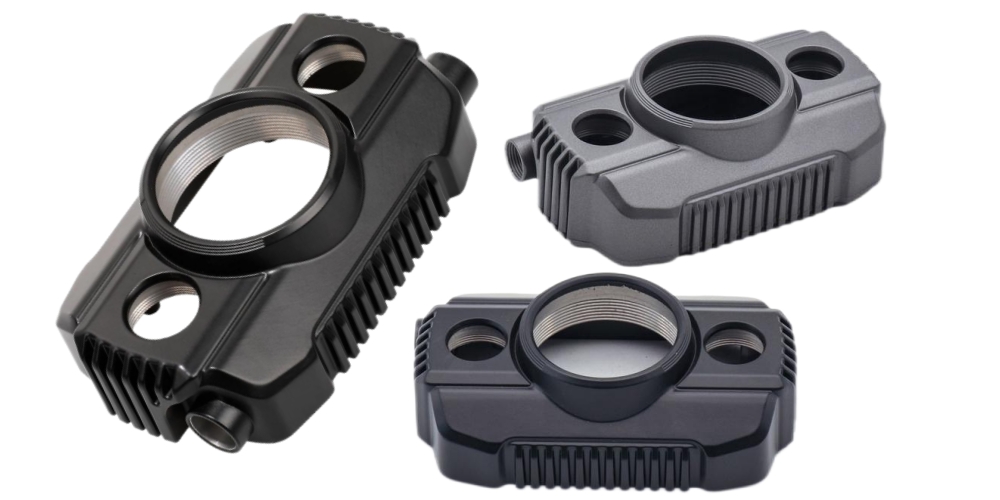

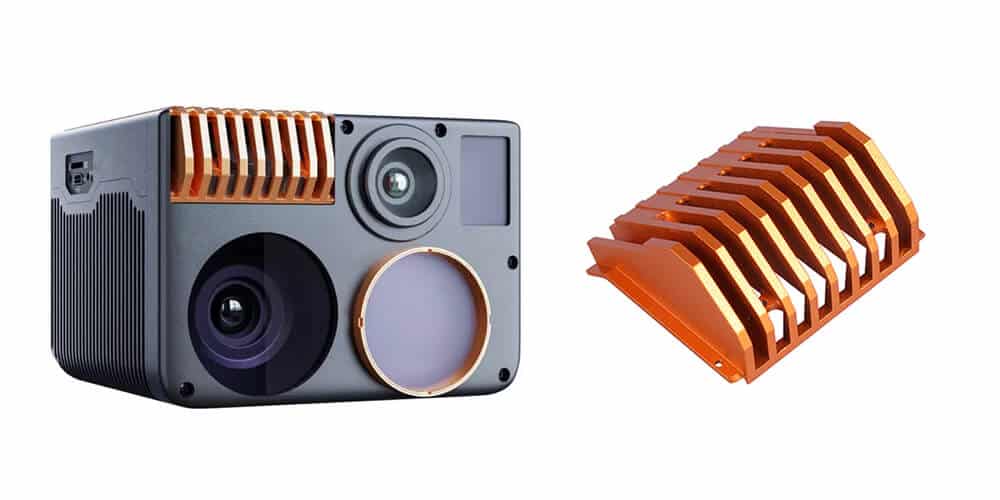

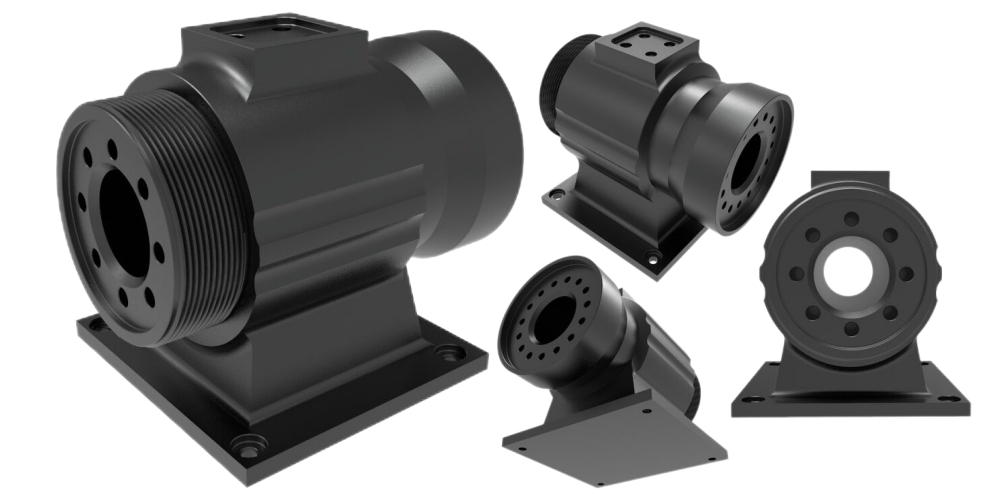

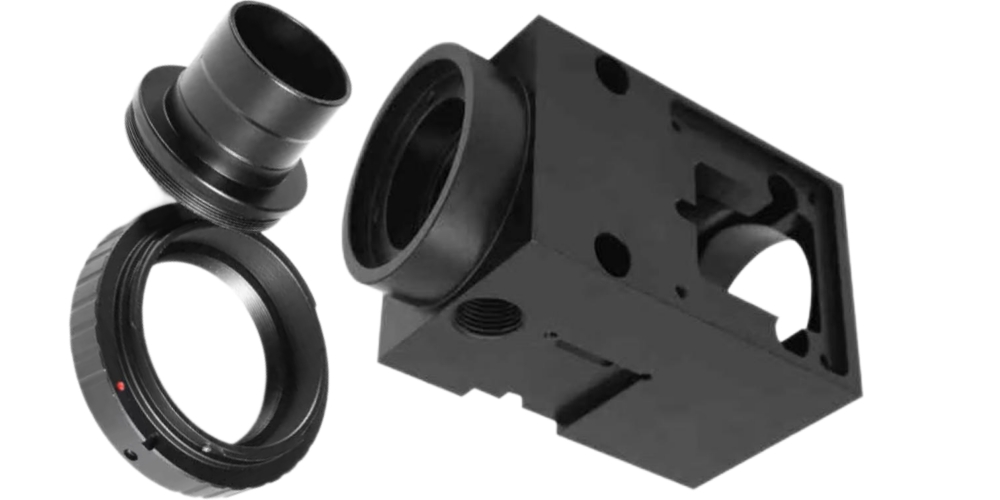

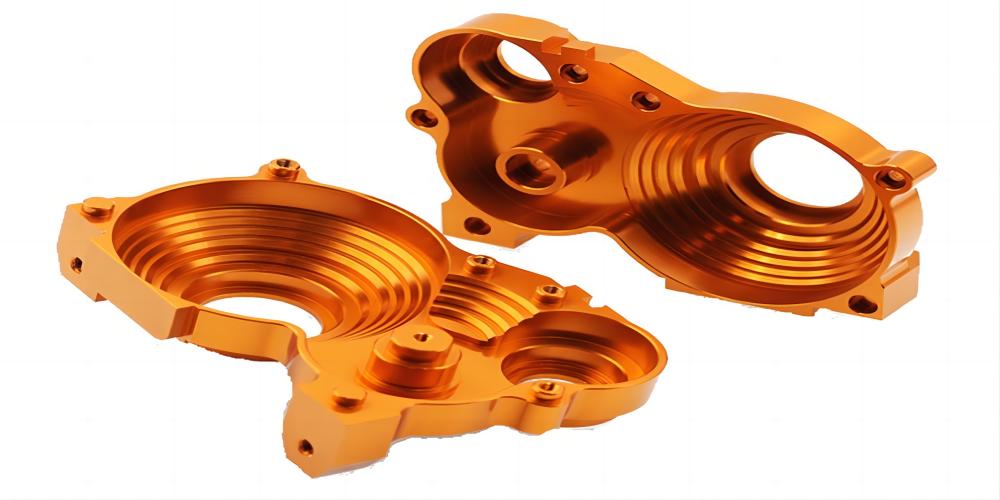

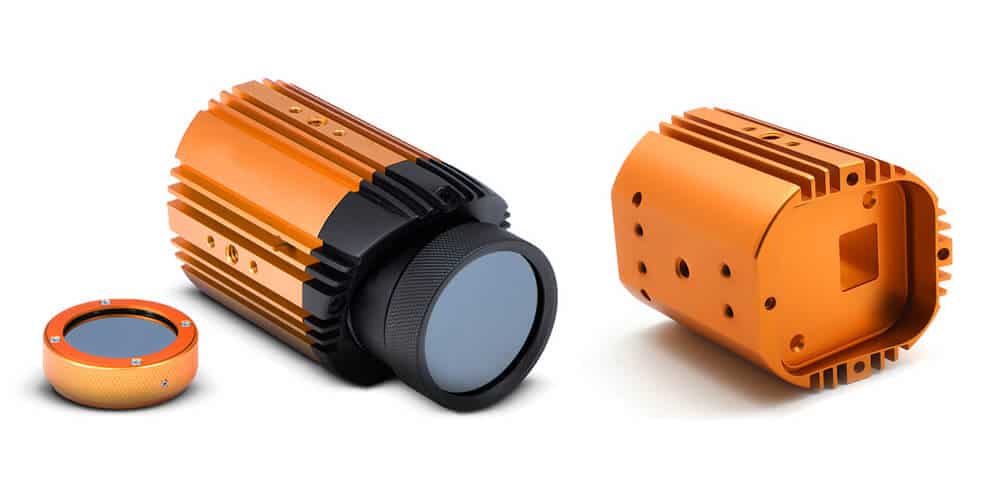

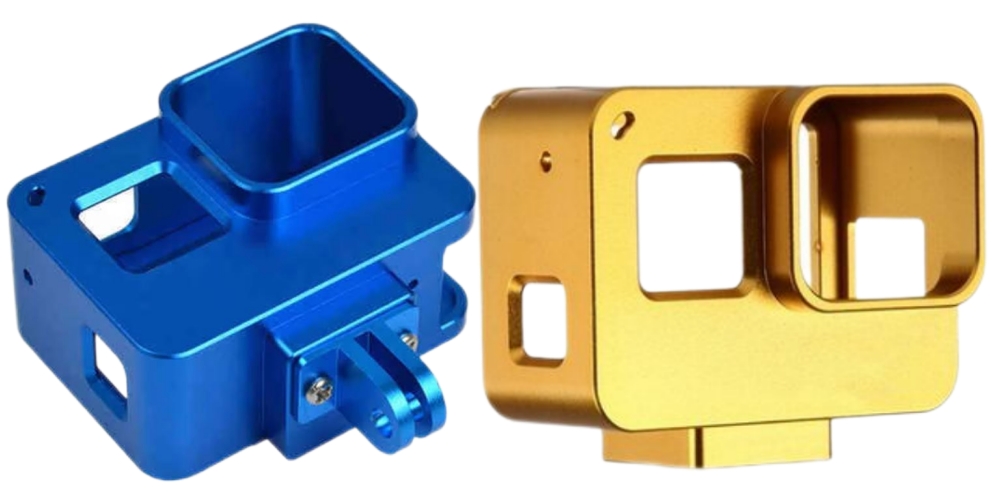

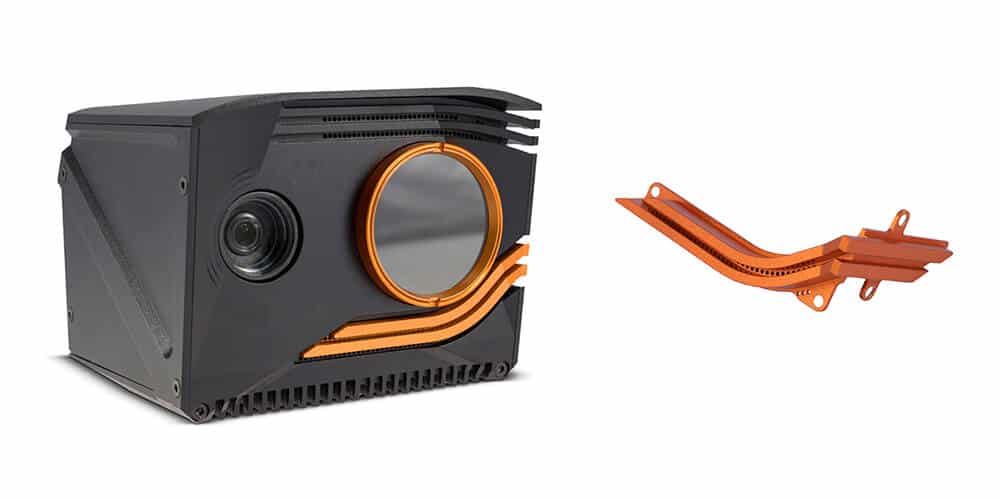

Optical Devices CNC Customized Parts

Processing：Machining, Turning, Milling, Grinding, Wire-EDM,Fabrication service etc.

Material：
1) Aluminum - AL 6061-T6, 6063, 7075-T,5083,6063,6082,5052,2A12 etc.
2) Stainless steel - SS 201,SS301 SS303,SS304,SS316L, SS416L,17-4(SUS630),440C, 430 etc.
3) Steel - 4140,4340,Q235, Q345B,20#,Cr12MoV,D2,A2,4140,4150,P20,S136,M2,O2, SKD11,CRS, etc.
4) Titanium - TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc.
5) Brass - C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc.
6) Copper - bronze,Phosphor Bronze, Magnesium alloy,  etc.
7) Plastic - Peek, Nylon, G-10, Acrylic,Anti-Static Acetal Tan (Tecaform SD) , PC,ABS, etc.
8) Food class ,Medical class- such as POM, Delrin, etc.
9) Aerospace class - PEI+30%GF,PEEK+30%GF,PC+30%GF,PU,PTFE,PE,PVC etc.
10) DedasunTech handles many other type of materials, please kindly contact us if your required material is not listed above.

Finish:
For Aluminum parts - Clear anodized, Color anodized, Hard anodized, Sandblasting, Chemical film, Brushing, Polishing, Painting, Silk screen printing,Etching,  Laser marking, etc.
For Stainless steel parts  - Polishing, Passivation,PVD, Sandblasting, Black oxide, Electrophoresis black, Painting, Silk screen printing,Etching,  Laser marking, etc.
For Steel parts - Polishing, Black oxide, Nickel /Zinc/Gold/ Chrome/Silver plating, Carburized, Powder coating,electrophoresis, QPQ(Quench-Polish-Quench), Heat treatment,Painting, Silk screen printing,Etching,  Laser marking, etc. etc.
For Brass parts - Nickel /Zinc/Gold/ Chrome/Silver/Titanium plating, Electrophoresis black, Powder coating,Painting, Silk screen printing,Etching,  Laser marking, etc.
For Plastic parts - Plating (ABS), Brushing (Acylic),Painting, Silk screen printing,Etching,  Laser marking, etc.
DedasunTech handles many other type of finish, please kindly contact us if your required finish is not listed above.

Tolerance:Minumum tolerance +/- 0.05mm (+/- 0.0005")
Surface roughness :Ra 0.1~3.2
Drawing format: Step/Igs/PDF/DWG/DXF, etc.

Testing equipment: CMM (Coordinate Measuring Machine),Height gauge, Caliper,  Hardness tester, Roughness tester, Projector machine, Pin/Angle/Block/Plug/Thickness/Thread/Radius  gauge,etc.
Certificate:ISO9001, ISO13485.
Inspection processing:IQC,IPQC, FQC, QA

Capacity:

CNC turning work range: φ0.5mm-φ650mm*600mm

CNC milling work range: 880mm*1300mm*600mm

Application: Automation, Medical device, Consumer Electronics, Security, IoT, Energy, etc.
