The procedure to remove them employs a special tool: a deburring tool. This step ensures smooth, safe parts for further use. In industries such as aerospace, automotive, and manufacturing, deburring proves essential. It guarantees high-quality, precision parts for complex machines. Altogether, deburring symbolizes a crucial step in the production cycle.

In the world of metal shaping, one question often rings out: What is deburring? It’s a vital process that defines the quality of a final product. The goal of this blog is to shed light on every aspect of deburring. You will dive into understanding burrs, their formation, different types, and the various deburring methods.

What is Deburring?


In the world of metalwork, deburring stands as a vital process. Simply put, deburring involves removing rough edges or burrs from metal parts. After cutting, shaping, or drilling, metal parts often have sharp, unwanted bits. They’re called burrs.

The procedure to remove them employs a special tool: a deburring tool. This step ensures smooth, safe parts for further use. In industries such as aerospace, automotive, and manufacturing, deburring proves essential. It guarantees high-quality, precision parts for complex machines. Altogether, deburring symbolizes a crucial step in the production cycle.

Understanding Burrs: The Why and How of their Formation!

What are Burrs?

Burrs denote the unwelcome byproduct of machining operations. Typically, when metal is cut or drilled, small fragments, or burrs, protrude from the surface. Burrs present a problem.

Sharp and uneven, they compromise the quality, functionality, and safety of machined parts. Furthermore, burrs can hinder assembly, leading to inaccurate fits and loose connections.

Factors Contributing to Burr Formation

–   Material Hardness

Hardness of a material influences burr formation. In deburring, a burr appears when a tough material gets cut. For example, steel with 800 HV hardness can form substantial burrs. Meanwhile, softer materials like aluminum with 150 HV hardness may result in smaller burrs. Higher material hardness leads to larger, more stubborn burrs.

–   Cutting Speed

Quick cutting speeds can also create burrs. Consider slicing a metal sheet at 200 meters per minute (m/min). The swift action could lead to rough edges, forming burrs.

If the speed drops to 50 m/min, the cuts are cleaner, and fewer burrs emerge. So, precision and control over cutting speeds are vital for reducing burr creation. It tells us what is a deburring tool used for – maintaining smooth surfaces.

–   Tool Wear

Deburring tools can wear down over time. A new tool with sharp edges may produce clean cuts at first. But after slicing through 1000 kilograms of stainless steel, the tool edges might dull. So, more burrs can appear. Regular maintenance and timely replacement of tools are essential to control burr production.

–   Inadequate Lubrication

Lack of proper lubrication during cutting contributes to burr creation. Let’s say a machine cuts through a metal block without enough oil. The friction could heat up the metal and cause burrs to form. Applying lubricant, like cutting fluid, reduces friction, and keeps the metal cooler. It makes the cutting process smoother and minimizes burr formation.

–   Incorrect Tool Geometry

The shape and size of the cutting tool can impact burr size. A tool with a 90° angle might create larger burrs than one with a 45° angle. Also, a larger tool diameter may result in bigger burrs. Correct tool geometry can help control burr size and number.

–   Feed Rate

What is deburring parts often starts with comprehending the nature of burrs. Sharp fragments, known as burrs, attach to metal pieces during machining. A high feed rate, one of the factors leading to burr creation, influences burrs. If the metal advances too swiftly, burrs might form.

–   Machining Temperature

Temperature is an essential element in machining operations. What is deburring process becomes pivotal when heat escalates during metal work. High machining temperatures can lead to burr formation.

–   Surface Roughness

Surface roughness could also bring about burr formation. If a machined surface is uneven, it may end up having more burrs. Smooth surfaces can help in minimizing burrs. Ensuring a uniform surface finish aids in the what is deburring tool used for scenario.

–   Tool Path

The pathway of the tool during machining influences burr formation. An irregular tool path might lead to an uneven cut, promoting burrs. On the other hand, a constant, smooth tool path minimizes the likelihood of burrs.

–   Exit Angle

The exit angle of the tool is an influential factor for burr creation. An incorrect exit angle can lead to burr formation. Maintaining a correct exit angle is crucial for avoiding burrs. In essence, burr formation depends on a combination of these parameters.

–   Edge Radius

Understanding burrs starts with the edge radius. In manufacturing, sharp edges lead to burrs. A lower edge radius, say 0.01 mm, can result in more burrs than a larger one.

Using a deburring tool can reduce this issue. The goal is to achieve smooth edges without extra material. Trust the process and see a reduction in defects. Every smooth edge shows expertise and a job well done.

–   Workpiece Stiffness

The stiffness of the workpiece plays a role too. A stiff piece, with a high Young’s modulus, can resist deformation better. However, stiff materials can also produce burrs. So, a balance is needed. The selection of material matters. Always remember that an appropriate material can help limit burrs. In turn, this can reduce the need for deburring.

–   Vibration

Mechanical vibration is another key factor. During machining, vibrations can displace material, forming burrs. Controlling vibrations leads to fewer burrs. So, focus on machine stability. Lower amplitude vibrations, under 1 m/s², usually help. The smoother the process, the less deburring is required.

–   Cutting Force

Pay attention to the cutting force too. High cutting force can cause material displacement, hence burrs. Keep the cutting force low, within the 10-20 N/mm² range, to lessen burrs. Apply the right force for the right material. Remember, thermal deburring can help with tough burrs. Strike a balance between force and the need for post-process deburring.

–   Material Microstructure

The last factor is the material’s microstructure. Grain sizes and arrangements can affect burr formation. Large grain sizes may cause bigger burrs. Aim for materials with small grains, under 100 μm. Understand that every piece is unique. Know the material well. In tricky cases, electrochemical deburring might be the solution. Each tiny change can lead to a significant improvement.

Different Types of Burrs!

§  Mechanical Burrs

Rough edges on machine parts; termed as ‘mechanical burrs,’ form due to cutting or drilling operations. The presence of these burrs often affects a part’s performance, sometimes even its safety. Deburring becomes necessary to ensure optimal functioning.

Many use a special tool, known as a deburring tool, for this. A high-speed rotation of the tool removes these undesirable burrs. This process not only increases the part’s lifespan but also improves the quality of assembly.

§  Thermal Burrs

Just as metal parts have mechanical burrs, thermal burrs occur on plastic components. During molding or casting processes, excess material often remains, forming what you know as ‘thermal burrs.’ Clearing these involves the use of a thermal deburring machine.

For this, one requires a certain gas. What gas is needed for a thermal deburring machine? The answer is oxygen, coupled with a controlled explosion inside the machine chamber. The sudden heat surge melts away the burrs, leaving a smooth and clean finish.

§  Residual Burrs

Residual burrs appear after machining processes, posing potential harm to machinery and operators alike. A technique named vibratory deburring comes into action. Here, a machine vibrates at high frequencies, creating friction between the part and abrasive media in the machine’s bowl.

The process smoothens rough edges, leaving parts free from residual burrs. This not only increases safety but also boosts the quality of the final product.

§  Poisson Burrs

Poisson burrs are raised edges on metal surfaces. After machining operations, such as drilling or milling, they appear. Skilled workers remove these using deburring tools. Precision is key here. Removing excess metal increases the quality of finished products. By ensuring a smooth surface, you reduce risks.

Cuts from sharp edges are avoided. Machinery parts fit better without these intrusions. Even small pieces measuring 0.001” matter.

§  External Burrs

External burrs protrusions stick out from edges. The cause is often cutting operations. The hard material fights back, forming these nuisances. Professionals use deburring bits for removal.

What does what is a deburring bit used for mean? Well, these bits can grind off unwanted pieces. Again, size matters. Even minute burrs of 0.0005” can cause problems. Machines work better when clean. External burrs can cause wear and tear.

§  Internal Burrs

Internal burrs form inside holes. Drilling and reaming operations can leave behind such burrs. These need special care. Their hidden nature makes them difficult to remove. A FCT unit deburring tool helps in these cases. FCT stands for Fast Cut Tool. These tools reach inside deep holes. They can clear out burrs down to 0.002” in size.

Type of Burr Formation Process Removal Method Impact on Material Commonly Occurs in Removal Cost Effect on Dimensional Accuracy
Mechanical Burrs Physical forces during machining Grinding, abrasive blasting Local deformation, scratches Milling, turning Medium Negatively impacts
Thermal Burrs High temperature operations Electrochemical deburring, thermal deburring Heat-affected zone, possible warping Laser cutting, welding High Considerably impacts
Residual Burrs Unremoved material after initial burring Ultrasonic cleaning, chemical treatment Might hide defects Any manufacturing process Low Minor impact
Poisson Burrs Material displacement due to stress concentration Electrolytic deburring, abrasive flow machining Micro-cracking, stress concentration Punching, pressing High Major impact
External Burrs Occurs on outer edges of material Manual filing, abrasive blasting Visual/aesthetic defects Most machining operations Low-Medium Negligibly impacts
Internal Burrs Formed inside holes or internal features Internal grinding, abrasive flow machining Hinder fit and function Drilling, reaming High Significantly impacts

Table on Different Types of Burrs!

An Overview of Various Deburring Methods!

»   Mechanical Deburring

Machines remove small bumps, or burrs, from metal parts. Tools such as brushes, sheet metal grinding wheels, or even filing can take part in this process. In one minute, a machine can debur around 500 to 1000 parts. This process yields smooth parts, aiding in their function. Such precision also enhances safety during handling.

»   Thermal Deburring

Another method to look at in deburring is the thermal process. Here, extreme heat makes burrs vanish from parts. Heat goes up to around 3,000°C in an enclosed space. In a few milliseconds, burrs are gone.

»   Cryogenic Deburring

Now, consider cryogenic deburring. Unlike thermal deburring, this process involves extreme cold. Think of temperatures dropping below -150°C. These frigid conditions cause burrs to become brittle. Then, vibration or blasting breaks them off. Afterward, parts are warm again in a process taking about two minutes. You might wonder, what is a gun deburring tool?

Often, it’s a cryogenic deburring system, because cold can’t harm delicate parts like a gun’s components.

»   Manual Deburring

A common method in the metalworking industry is manual deburring. Workers use hand tools like files or sandpaper. On a piece, they rub away unwanted sharp bits, also known as burrs.

This method is straightforward, suitable for different shapes and sizes. However, accuracy relies on the worker’s skill. Some processes involve special machines with spinning heads. Manual methods are best for small production volumes or intricate components.

»   Grinding and Rolling

To understand grinding and rolling, consider large machines. They hold metal parts, rotating them against abrasive surfaces. During the process, unwanted edges or burrs get smoothed down. Steel balls can also be used, rolled over the surface under high pressure.

Grinding works well on hard metals and can process many pieces at once. However, it can’t reach into small corners or complex parts.

»   Electrochemical Deburring

For precision tasks, electrochemical deburring is the answer. It uses electricity and a conductive solution. In this process, a small electric current is passed through the part. This causes unwanted burrs to dissolve. No mechanical force is needed, so there’s no chance of damaging the piece. It’s excellent for parts with tiny holes or complex geometries.

»   Hole Deburring

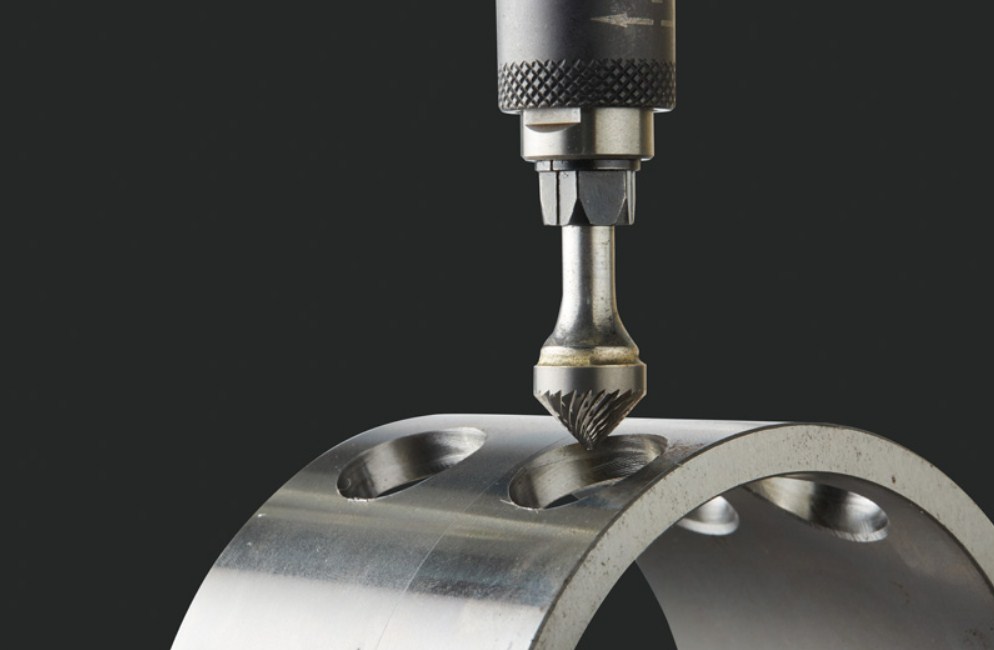

If a part has holes, burrs can form inside them. To tackle this, there’s hole deburring. Special tools called deburring bits are inserted into the holes. They spin at high speed, removing burrs from the inner surface. This technique is highly accurate but can be slow if many holes need deburring.

»   Brushing

Brushing employs robust bristles, making precise contact with metal surfaces. Workpieces, having different shapes, sizes, and types, receive thorough clean-up. Undesired edges or burrs, those tiny irregularities, get removed. Rotary brushes are a popular choice.

Their dynamic, fast spinning action ensures smooth finishes. Always prioritize proper brush selection. Consider stiffness, size, and bristle material for effective deburring. Enhanced product quality becomes possible through diligent brushing.

»   Electrochemical deburring

Electricity and chemical reactions are key players here. It’s a process where metal parts submerge in a bath of electrolytes. Applying a specific voltage initiates an electrochemical reaction. This event results in controlled metal removal. Special attention goes to unreachable, intricate sections. Burrs hiding in those parts get eliminated. More uniform, smoother finishes come out.

»   Cryogenic deburring

It’s a chillingly unique process, using extremely cold temperatures. Liquid nitrogen, having a temperature of minus 196°C, gets used. Burrs become brittle at such low temperatures. A quick mechanical shock follows.

The result is brittle burrs shatter, leaving a burr-free workpiece. No damage occurs to the actual part. Cryogenic deburring suits best for plastic and rubber materials. Yes, deburring isn’t limited to metals only.
